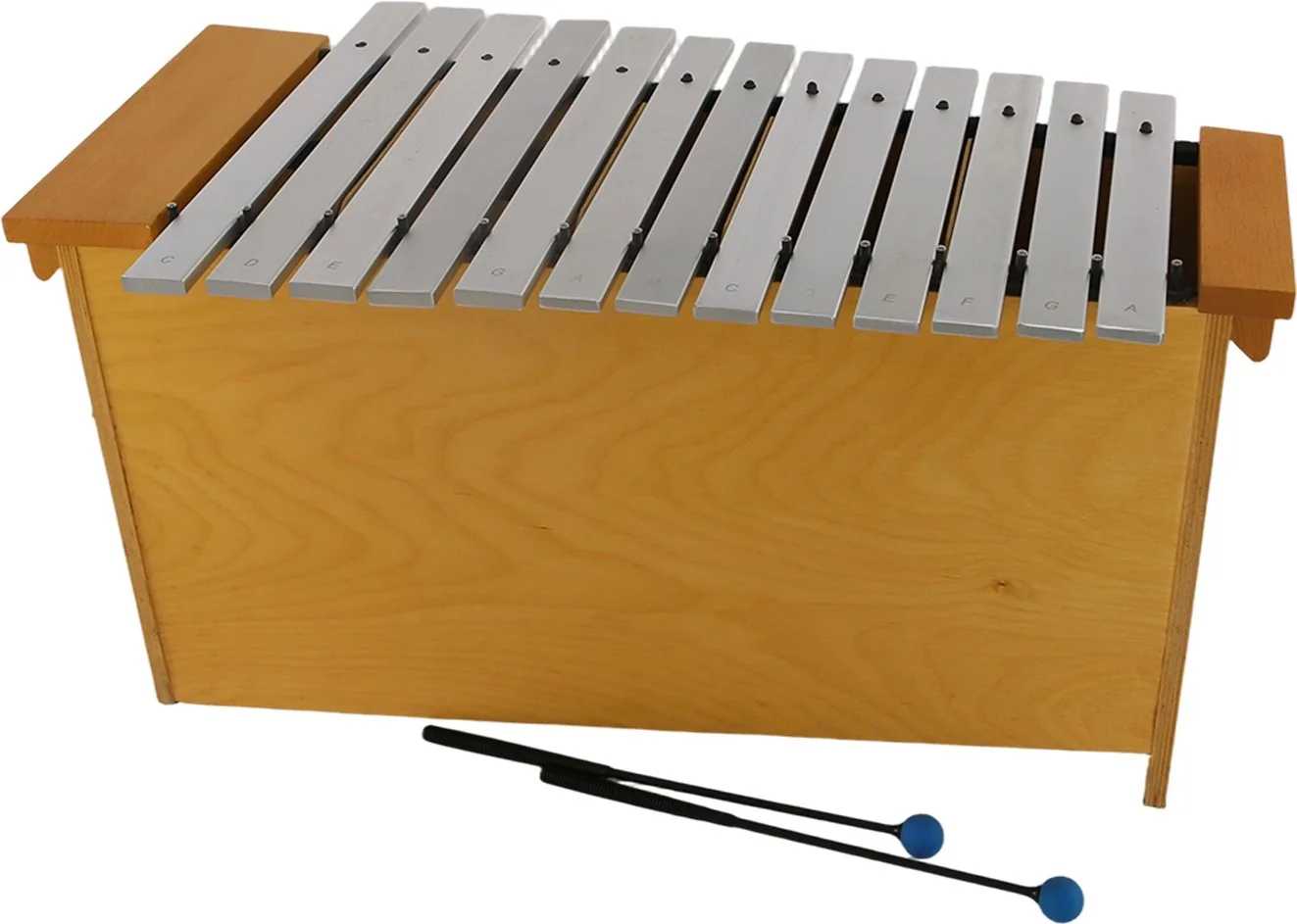

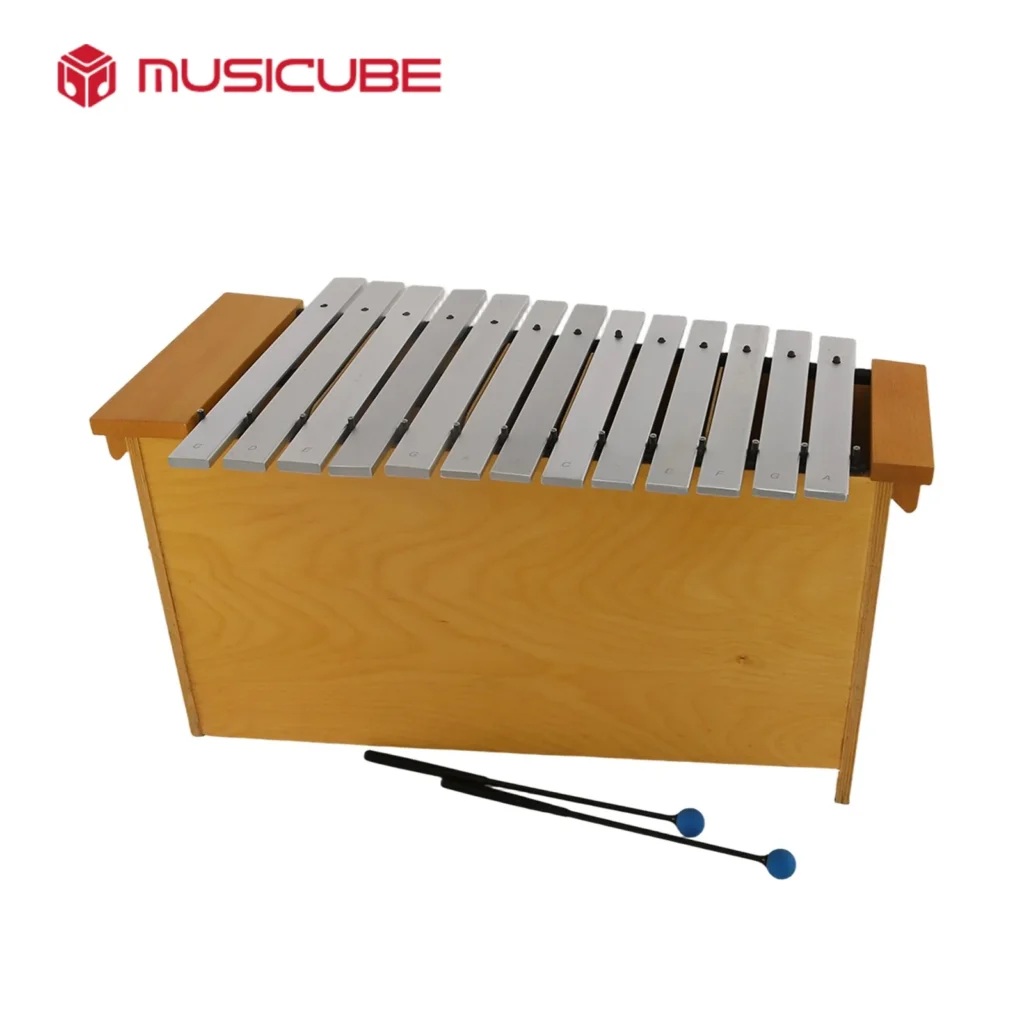

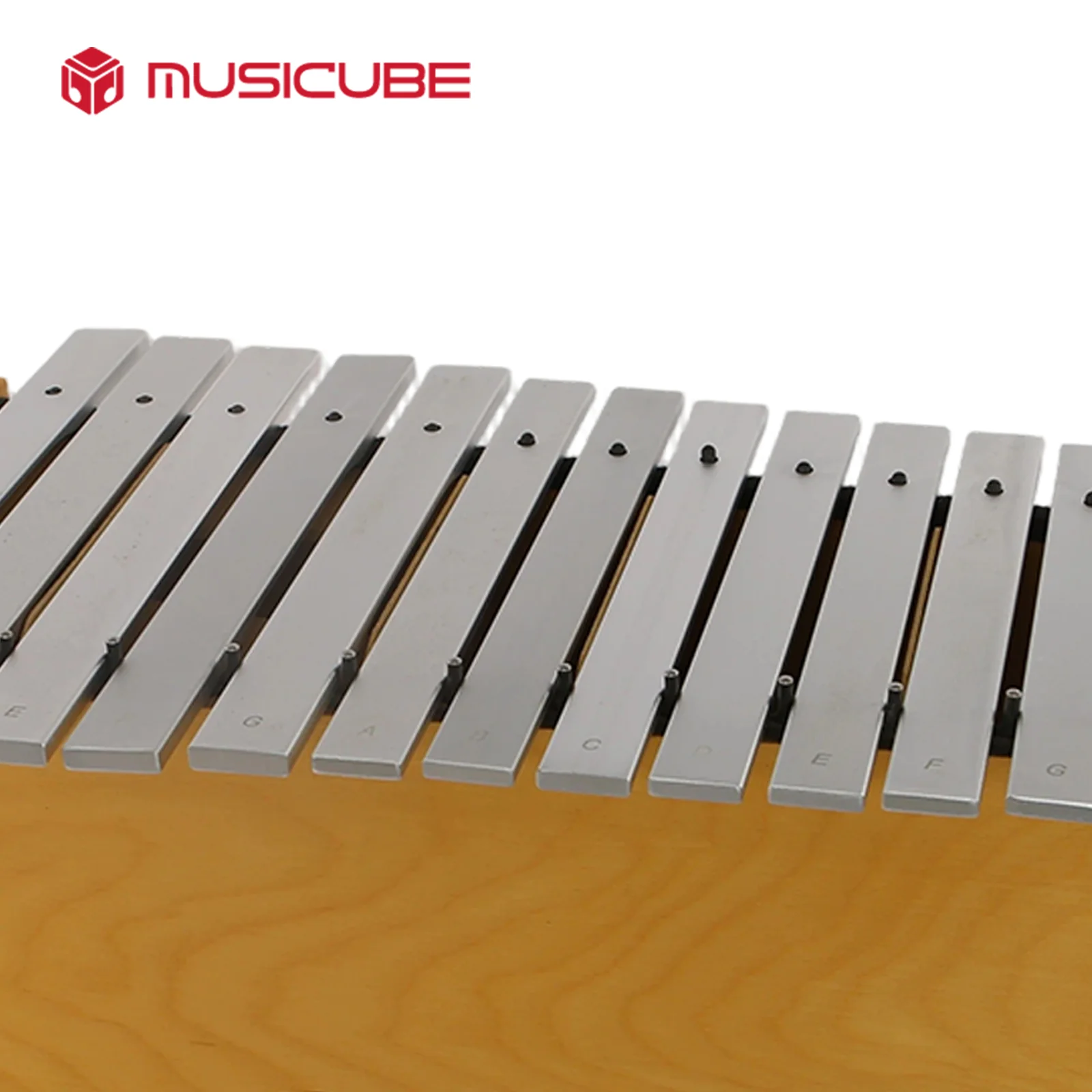

Bass Metallophone – 13 Diatonic Bars

Key Specifications

13-Tones Metallophones: The Foundation Voice

Every classroom arrangement needs a floor. The 051303 Bass sits two octaves below the soprano metallophone, grounding the Primary trio with root notes, ground bass lines and the low C that makes a school hall resonate.

Features

• Metal bars made of special aluminum
• 16 metal bars with carving Notes, includes 2 x f# and 1 x Bb bars
• Fundamental tuning
• Tuneable to C major, G major or F major
• Sandblasting and anodizing treatment of aluminum bars make the clear and powerful sound
• Flexible pins
• Resonance box made of 12 mm birch plywood
• Multiple resonance chambers for a rich sound quality
• Resonator box are protected with water-based paint for lasting durability
• Handles for easy transportation
• The plastic mallets are made of rubber with different hardness (3 levels)
• Musicube songbook with colored keys for easy learning
• 2 plastic mallets, song sheet with coloured notes & cloth bag included
• Great for use in the classroom
• Packed in brown box

Model 051303 Specifications

• Size of resonance box is 674 x 267 x 356 mm (L x W x H)
• 10 bars — 32 x 8 mm, 6 bars — 36 x 10 mm
• Pitch range from C3 to A4 (Additional notes F#3, Bb3 and F#4)
• Equipped with 2 dark blue mallets

Why the Bass Bars Are Thicker

The six lowest bars of the 051303 are not just longer — at 36 × 10 mm they are a full gauge class above the soprano and alto bars, because low frequencies demand moving mass. A thicker bar swings more air, holds its fundamental longer, and survives enthusiastic young players who have just discovered volume.

• Six bars at 36 × 10 mm cover the deepest sixth of the C3–A4 range
• Ten bars at 32 × 8 mm keep the upper bass register bright and quick-voiced
• The 356 mm resonance box gives those fundamentals the air volume they ask for
• Fundamental tuning means the pitch you hear is the pitch you read — no octave tricks

Bass Lines a Beginner Can Hold

• Root-note walking: one bar per bar of the song — the first bass line most children ever play
• Ground bass ostinato: a four-bar loop the whole class can improvise over
• I–V foundation: the bass roots that make the alto’s bordun sound like a full chord
• Ensemble anchor: when twenty instruments play, the bass is the clock everyone follows

Like its siblings, the 051303 tunes to C, G or F major with the add-on bars in the cloth bag — the whole choir modulates together, bass included.

Product Highlights

What’s in the Box

• 1 × Bass Metallophone — 13 diatonic bars (10 × 32 × 8 mm + 3 × 36 × 10 mm mounted) on the birch resonance box (C3–A4)
• 3 × add-on bars (2 × F-sharp, 1 × B-flat) in a cloth carrying bag
• 2 × dark blue plastic mallets (rubber, from the 3-level hardness system)
• Musicube songbook with colored keys & song sheet with coloured notes

Applications

Product Positioning

The 051303 Bass completes our three-part Primary metallophone platform: sixteen aluminum bars spanning C3 to A4, with the six lowest bars beefed up to 36 × 10 mm for real fundamental weight, all mounted on a towering birch resonance box. Above it, the 051302 Alto carries harmony and the 051301 Soprano leads melody — together the trio covers three octaves of classroom repertoire with one construction standard.

It shares the production line, tuning bench and certification process with our own consumer brand Musicube — the same instrument that is already selling on the US retail market under the Musicube name.

From the Catalog: The Primary Metallophone Line

The bars with the laser of the note enable a visual connection between the sheet music and the instrument. When improvising with self-created melodies, children always have a visual reference to the printed notation. From the other perspective, the players get a feeling of how a play note sounds. All Primary metallophones have 32 x 8 mm (Soprano and Alto) or 36 x 10 mm (Bass) sound bars with fundamental tuning. The newly designed resonator box with enhanced acoustics are made of solid and laminated birch. The resonator boxes of the Musicube metallophones are made from FSC® certified timber from well managed forests. In addition, all wood surfaces are protected with Water-based paint, an environmentally safe, all-natural varnish.

Each metalophone is equipped with a carrying bag to stow 3 bars (2 x f-sharp, 1 x b-flat).

Quality & Manufacturing

The resonator box is built from 12 mm birch plywood with FSC® certified timber from well managed forests, finished in water-based paint — an environmentally safe, all-natural varnish. Special aluminum bars receive sandblasting and anodizing treatment for the clear and powerful sound — 32 × 8 mm across the upper range and a heavier 36 × 10 mm gauge for the six deepest bars — and sit on flexible pins over multiple resonance chambers. Batch-level EN 71, ASTM F963 and GB 6675 reports are available for every shipment, issued under your brand name.

Below: the production line where this model runs.

And the paperwork your import process will need — real reports, not templates:

OEM / ODM: Make It Yours

Once the instrument is proven, the next question is how it starts carrying your brand:

• Logo: print on the birch resonance box, from low trial quantities.
• Songbook: your brand and your own song selection on the colored-keys songbook.
• Mallet colors: the three-level hardness system can ship in your Pantone-matched colors at volume.
• Packaging: the brown box takes a full-color sleeve, or we quote a full-color box from volume.
• FSC® claims: chain-of-custody documentation supports your sustainability labeling under your brand.

Request OEM pricing for this model → — costed proposal within 24 hours.

Packaging & Export

What lands at your warehouse:

• Each unit packed in a brown box with the cloth bag, add-on bars and mallets inside; export cartons engineered for drop-test survival.
• Shipping terms: FOB Ningbo/Shanghai; DDP available for EU and US destinations.
• MOQ, carton quantity and container loading for this SKU are confirmed on your quotation — ask with your quantity.
